That Unused Moisture Data View

[CorinaMarie 29,621]

So, just as @bklj2007 noticed the unused DataView: Moisture Exemplar in SimCity_1.dat (and posted about it here), I too found it and then searched for more information. There was that thread and one over at SC4D. The Devotion one supposedly has an attached mod for it, but clicking the linky at the bottom of the post simply loads the same post in a new tab. That's prolly cause I'm not a member. As it happens last evening in chat @Mister Giggles gave me some tips about extracting single exemplars and so I decided to see what I might be able to do by myself. (I like the exploring and learning which made this a good test.) The main clue I had was when bklj2007 said they modified the data source of the air pollution view. Seems simple enough and it was.

However, I didn't care for the yellow to red representation. This encouraged me to learn that the color ramp variable is split into pairs of data and the first is the intensity of the data level itself and the other is the color with the first two bytes being the opacity and the other six bytes in pairs corresponding to red, green, and blue additive values of the standard RGB model. Anyhow, thru multiple trial and (mostly) error tests I discovered the data intensity level range had to be expanded since the air pollution starts at 128 (80 hex) and goes to 255 (FF hex) whereas the moisture data is in the full range of 0 - 255, but (and here was the difficult part for me) it's not a straight linear progression.

After tweaking and finally deciding most of my errors were eradicated, I settled on the hex values which seem to best represent the moisture variations throughout the year. Here's some pics just in case anyone else is curious.

Initial city tile painted with Maxis trees as thick as the game would allow:



Edit: Old Pic January:



Edit: As pointed out by @MushyMushy the above pic doesn't fit the pattern cause I didn't let the simulation run long enough before taking the pic. So, I ran it (more than needed) for 10 years:

January:



February:



March:



April:



May:



June:



July:



August:



September:



October:



November:



December:



Then I noticed the data view legend still had from yellow to red so I tweaked those little squares too:



And that's as far along as I am with it. Next on my agenda is to see if it's possible to change the name from Air Pollution to Ground Moisture. I'm guessing the DataView: Legends Labels hex values correspond to some text somewhere else in the SimCity_1.dat file. If any one knows for sure, I'd appreciate advice.



Edit:

On 7/6/2016 at 10:08 AM, simmaster07 said:

Here's a link:  https://i.imgur.com/FuDCNZE.gif to an animated GIF (1.8MB) of the monthly moisture cycle in the original post.

Also see my post here for how the Water min = and Water max = in the Region.ini file can be used to alter the ground moisture when rendering a map from grayscale.

I've put my mod on the STEX as Cori's DataView - Moisture. Please note this is a beta version. The Pollution View is prolly not the best place for it. Radiation or Power or such might be better. I created this as a proof of concept. You can just pull the .dat file in and out of your plugins since it's only real use would be during initial terrain creation for placing trees by hand or, perhaps, as an aid to peeps designing ground texture or tree controllers.

Just in case anyone wants to do tests on the exact same tile as I used in the above pics it's the one in the upper left of my Coriland 2.2 Map v2016.07.01 on the STEX.



Edit Too: Ok, I've created a new version of the mod and it's attached to this post in this thread. It now uses the nearly worthless Radiation View instead of the Air Pollution one. Just toss the old mod after you get this new one. I also added to my STEX upload.

[Mister Giggles 310]

It is (...probably) possible to add more buttons to the data view selection screen, so you don't need to replace the air pollution data view. Look at instance EA287193 in SimCity_1.dat - that appears to be the UI file for Data View. Editing it may be problematic given how it looks in iLives Reader 0.9.3 and Tropod's updated version. iLives 1.4, if I recall, renders complex UI elements correctly. It also has a nasty habit of corrupting files, so keep back ups.

The number next to "DataView Legends Key" corresponds to a LTEXT file, likely within SimCityLocale.DAT.

Edit: I should note that you don't NEED the UI file to be properly rendered in order to modify it - though that makes it easier to see what your changes are doing. Most of your time will be spent fiddling around in the data graph that makes up the UI.

[Prophet42 1,501]

Great investigative work CorinaMarie.  As a side note, you might want to check out the JENX weather controller and aurora controller.  These add weather effects to SC4, like rain, snow, rising/setting moon, rising/settng sun and auroras.

Apparently there was a lot of features that were put into SC4 during development but never made it into the production version.  It is up to talented people like you to discover the buried features, test them, make them useful then release them to the world.  Keep up the good work.

[Mary Maurine Mayo 984]

very nice work there corina. looking forward to more work from you.

[vortext 573]

15 hours ago, CorinaMarie said:

There was that thread and one over at SC4D. The Devotion one supposedly has an attached mod for it, but clicking the linky at the bottom of the post simply loads the same post in a new tab. That's prolly cause I'm not a member.

Yep that's correct, you need to be logged in as a member in order to see  & download forum attachments.



13 hours ago, Prophet42 said:

As a side note, you might want to check out the JENX weather controller and aurora controller.  These add weather effects to SC4, like rain, snow, rising/setting moon, rising/settng sun and auroras.



JENX'  weather effects have no relation to moisture simulation though, they're purely visual effects.

If you want to dig a little deeper into the moisture / weather simulation, I'd recommend checking out Lowkee33's work as he at one point actually had a proof of concept for a seasonal terrain mod. Unfortunately pictures have gone missing since though irrc there're quite a few interesting files attached to various posts, so maybe create an SC4D account after all.

[CorinaMarie 29,621]

Purpose of Water Min / Max in Region.ini Resolved

On 4/13/2016 at 8:12 PM, APSMS said:

If the water Max/Min does anything, I suspect it has to do with moisture levels to determine how to display the terrain ...

^(Bold added.) You are entirely correct.

So, I created a single large tile region for quicker testing.

Water Min = 60, Water Max = 100 :



Water Min = 30, Water Max = 150 :



Water Min = 60, Water Max = 200 :



January 11 Moisture, Water Min = 60, Water Max = 100 :



January 11 Moisture, Water Min = 30, Water Max = 150 :

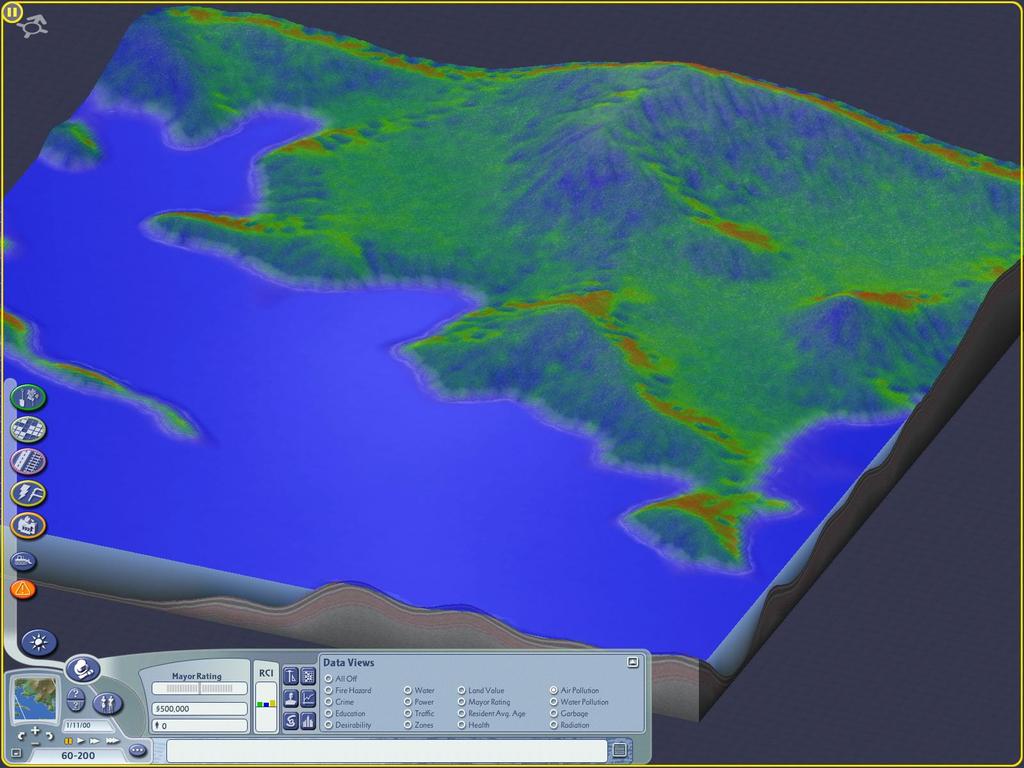

January 11 Moisture, Water Min = 60, Water Max = 200 :



July 11 Moisture, Water Min = 60, Water Max = 100 :



July 11 Moisture, Water Min = 30, Water Max = 150 :



July 11 Moisture, Water Min = 60, Water Max = 200 :



Now the important aspect seems to be that changes to these two variables are only implemented during a grayscale import render. Changing them after the fact has no effect.

I was going to wait until I had researched the aforementioned tweaks to the Labels, but that being merely cosmetic and hoping other peeps might like to play with this new option, I'm attaching my modded .dat file to this post.



Edit: I added it to the STEX in case any guests would like to have it: Cori's DataView - Moisture.

Edit2: I've attached the Grayscale and Config bmps to this post too in case anyone wants the same city tile as I used in the above pics. This is not the same as I used in the first post. I made this single large tile region here for quickly doing multiple renders with the different settings in the Region.ini file. As mentioned above, the variations to the Water min & max only affect the moisture levels when the render takes place.

Air Pollution as Moisture.dat

One Blue Tile.zip

[APSMS 1,892]

It may be worth noting that the mod included on the SC4D forums (attachement) uses the mostly useless Power Data View, which is mostly obsolete because in an umodded game, we can count to 4, and in a modded game (like mine), I have power stretched over the entire city w/o power lines.

The air pollution data view is slightly more useful. Just saying.



Oh, and I seem to be wrong about terrain textures. They are placed by temperature and moisture, not elevation. Higher elevations are colder, which is why the effect seems to even out, but strictly speaking elevation is not a factor in picking terrain textures.

  Edited July 4, 2016 by APSMS
:-P Brain works faster than my fingers.

[CorinaMarie 29,621]

1 hour ago, APSMS said:

It may be worth noting that the mod included on the STEX uses the mostly useless Power Data View, which is mostly obsolete because in an umodded game

So, this has already been done and I'm wasting my time?

1 hour ago, APSMS said:

The air pollution data view is slightly more useful. Just saying.

For a proof of concept I'm not at all concerned which view I replace. I can pull it in and out of my plugins for testing.

[APSMS 1,892]

@CorinaMarie I'm a terrible person.



I meant, the one available on the SC4D forums (under Lowkee's Terrain tutorial). Yours is the first one I've seen on the STEX. I've edited my original post to match. Sorry for the misspeak.

[Mary Maurine Mayo 984]

Ill grab it tonight or tomorrow.

[matias93 7,535]

And here we go again with amazing modding, by heroically dedicated modders, exploiting all what the game code has to offer. Thanks for so much!

Now, what surprises me is that moisture is concentrated on southern-facing slopes, which is very convenient for the few of us that have regions ambiented on the southern hemispere, because most evaporation would happen on northbound slopes, more exposed to the sun.

But for most players that locate their regions on North America, Europe and East Asia, this is very incoherent: this brings the question: is this moisture distribution hard-coded, or it could be modded to coincide with northern hemisphere regions?

[CorinaMarie 29,621]

8 hours ago, APSMS said:

@CorinaMarie I'm a terrible person.



I meant, the one available on the SC4D forums (under Lowkee's Terrain tutorial). Yours is the first one I've seen on the STEX. I've edited my original post to match. Sorry for the misspeak.

I'll admit it was the 2nd time I went away from ST upset and crying. I felt that my post moments before yours was verifying what you said about the water min/max being related to the ground moisture content and I was also hoping my screenshots of the renders with variations to said variables would provide new insight into a previously unverified aspect of the game.

As for which Data View I replace, I'd already been chatting with a couple peeps about moving it to radiation since that's essentially worthless to me or taking on the onerous (to me atm) task of making it a whole new entry on the UI thinger as @Mister Giggles suggested. Or just coding up 3 or 4 under different views and then whoever downloads them could pick which view to replace based on their play style.

It just isn't my top priority right now. I do have a problem with follow through on making projects pretty. I'm more of the let's-see-what-else-I can-find-that's-exciting type.



2 hours ago, matias93 said:

Now, what surprises me is that moisture is concentrated on southern-facing slopes, which is very convenient for the few of us that have regions ambiented on the southern hemispere, because most evaporation would happen on northbound slopes, more exposed to the sun.

But for most players that locate their regions on North America, Europe and East Asia, this is very incoherent: this brings the question: is this moisture distribution hard-coded, or it could be modded to coincide with northern hemisphere regions?

Yeah, I believe it was some of Lowkee's work I'd read related to someone needing to alter moisture on a particular sloped part of the ground in order to plop someone's MMP tree or something. There was definitely mention about the southern sides of hills having more moisture. My guess would be this is hard coded in the game, but with my limited knowledge that's merely speculation.

[APSMS 1,892]

3 hours ago, CorinaMarie said:

I'll admit it was the 2nd time I went away from ST upset and crying.

I'm crossing my fingers that you're being tongue-in-cheek here.

6 hours ago, matias93 said:

And here we go again with amazing modding, by heroically dedicated modders, exploiting all what the game code has to offer. Thanks for so much!

Now, what surprises me is that moisture is concentrated on southern-facing slopes, which is very convenient for the few of us that have regions ambiented on the southern hemispere, because most evaporation would happen on northbound slopes, more exposed to the sun.

But for most players that locate their regions on North America, Europe and East Asia, this is very incoherent: this brings the question: is this moisture distribution hard-coded, or it could be modded to coincide with northern hemisphere regions?

Actually, the image is deceptive due to SC4 perspective. As far as Ennedi and Lowkee were able to determine, the hydrology simulation is mostly a moisture simulation (since the dynamic aspect of that simulation is disabled), and moisture is directly affected by wind. The effect was determined to be hardcoded barring new evidence, as all efforts to change its direction were unsuccessful. Wind in SC4, using the only enabled terrain INI tables (tropical), blows from the east to the west. Thus, eastern facing slopes will be dryer than western facing ones; the wind does oscillate, which gives the appearance of dryer southern slopes, but reliably only the eastern facing slopes will be consistently dry. Others will vary depending on what appears to be the mfWindPerturbationRange variable in the Weather Tuning Exemplar. I wonder if a negative value here would allow opposite wind direction, but regardless the way it works defies logical exploitation (we would typically want the north or south slopes to have emphasized moisture/dryness, not the east/west ones).

It would be interesting to see how much could be accomplished by DLL modding, but that is a very convoluted can of worms.

[CorinaMarie 29,621]

1 hour ago, APSMS said:

I'm crossing my fingers that you're being tongue-in-cheek here.

No, but it's my own fault. I was so excited about having discovered there is an actual use for the values in Region.ini and your post caught me off guard.

Now, at this early stage I'm not sure what use (if any) they will have other than peeps rendering maps from grayscale could tune them more towards dryer or wetter climates. But, that's prolly also something already available in the other terrain creation tools. I don't know cause I haven't explored their possibilities yet.

[matias93 7,535]

To me, the first ideas are for foresting tiles more accurate and realistically, and also to populate slopes considering water availability and water related risks. This could be obviated in big cities, but in small communities or even on urban slums, that is critical knowlegde in RL, and should be when playing.

For example, in a hilly terrain sorrounding a city (I'm thinking on Valparaíso but San Francisco is very similar), very humid, and hence forested places won't be populated soon (because to cut all those trees is a huge instantaneous investment); but too arid slopes neither can sustain population, because the houses, without access to water pipes from the city proper, must use local aquifers. So you get a distribution where slums are located on shaded slopes, but not on the forested and sometimes damp cliffs between them, nor on the flatter and arid top, where community services have to be built when the population size demands it.

You can check how this ocurres in real life here:

Valparaíso, Chile

San Francisco, US

Sendai, Japan



[Mandarin(a) 35]

8 hours ago, APSMS said:

... using the only enabled terrain INI tables (tropical) ...

I have always wondered if this is the reason there are max. three available seasons for seasonal flora.

[vortext 573]

Hm, that seems unlikely. Maxis' initial use of 'seasonal' flora was to emulate tree growth over a couple of decades, from sapling to mature. Seasonal flora as we know it nowadays works, among others, because the time span has been dialed back to one year.



[APSMS 1,892]

@CorinaMarie Well, my apologies. Obviously that wasn't my intention.

Food for thought: the hydrology simulation only appears to run on terrain loading, as does the moisture simulation (values change monthly, but are calculated when opening the city). Perhaps when creating a region in SC4Mapper, this parameter could be set?

There is another parameter in the Weather Tuning Exemplar called mMoistureVariationScale, which is described as the "Amplitude of plasma-based noise in moisture map (map creation only)". Default value listed is 40, which would be the difference between the default min=60 and max=100.

It may be worth installing something like CP's Columbus Terrain mod (or similar; Missouri Breaks is probably more distinctive) because it has far more textures, and the moisture differences would be far more noticeable (or make an SC4D account and download Lowkee's Seasonal version of the CP mod to see something similar). Mostly, I suspect that this mainly influences the range of textures that you see at lower (warmer, moister) altitudes since higher altitude textures (really temp and moisture) tend to be mostly the same (less noticeable differences).

[Cyclone Boom 16,938]

This is all very interesting...

Well done, it's great to see new discoveries into the game's mechanics.

[simmaster07 1,220]

Oh neat, the weather simulator is actually functional, I just might have to get back to investigating that in my GZCOM framework. I'm especially curious to see if the moisture data is referenced anywhere else in the game.

Here's a link to an animated GIF (1.8MB) of the monthly moisture cycle in the original post.

As evidenced in the list of functions related to weather that I've found so far, SC4 also references humidity, seasons, and (as mentioned above) wind. I haven't been able to analyze exactly what's going on with these, though. I will try to get on that over the next couple of days.

 0000:00000000       cSC4WeatherSimulator::PositionToCell(float,float,int &,int &)
 0000:00000000       cSC4WeatherSimulator::CellToPosition(int,int,float &,float &)
 0000:00000000       cSC4WeatherSimulator::CellToStandardCityCell(int,int,int &,int &)
 0000:00000000       cSC4WeatherSimulator::StandardCityCellToCell(int,int,int &,int &)
 0000:00000000       cSC4WeatherSimulator::GetCurrentSeason(void)
 0000:00000000       cSC4WeatherSimulator::GetCurrentSeasonMonth(void)
 0000:00000000       cSC4WeatherSimulator::GetMoistureValueMapPtr(std::vector<std::vector<uchar,std::allocator<uchar>>,std::allocator<std::vector<uchar,std::allocator<uchar>>>> *&)
 0000:00000000       cSC4WeatherSimulator::GetMoistureType(float,float)
 0000:00000000       cSC4WeatherSimulator::GetHumidity(float,float)
 0000:00000000       cSC4WeatherSimulator::GetWindAtCell(int,int,float *)
 0000:00000000       cSC4WeatherSimulator::DoMessage(cGZMessage &)
 0000:00000000       cSC4WeatherSimulator::PostMessageServerMessage(ulong,void *,ulong,ulong)
 0000:00000000       cSC4WeatherSimulator::AddRef(void)
 0000:00000000       cSC4WeatherSimulator::FinalRelease(void)
 0000:00000000       cSC4WeatherSimulator::Release(void)
 0000:00000000       cSC4WeatherSimulator::QueryInterface(ulong,void **)
 0000:00000000       cSC4WeatherSimulator::GenerateMoistureVariation(void)
 0000:00000000       cSC4WeatherSimulator::WriteTemperatureValue(int,int,int)
 0000:00000000       cSC4WeatherSimulator::GetAmbientWind(float *)
 0000:00000000       cSC4WeatherSimulator::ReadSimulatorTunableValues(void)
 0000:00000000       cSC4WeatherSimulator::Shutdown(void)
 0000:00000000       cSC4WeatherSimulator::GetMoistureValue(float,float)
 0000:00000000       cSC4WeatherSimulator::CalculateSeaTemperatureModeration(std::vector<cRZRect,std::allocator<cRZRect>> const&,std::vector&<std::vector<bool,std::allocator<bool>>,std::allocator<std::allocator<bool>>>)
 0000:00000000       cSC4WeatherSimulator::GetNewCurrentAmbientValues(int)
 0000:00000000       cSC4WeatherSimulator::SetManualMoistureAddition(float,float,float,float,float)
 0000:00000000       cSC4WeatherSimulator::SimulateCellTemperature(int,int)
 0000:00000000       cSC4WeatherSimulator::SimulateMoisture(SC4Rect<int> const&)
 0000:00000000       cSC4WeatherSimulator::UpdateMoisture(SC4Rect<int> const&)
 0000:00000000       cSC4WeatherSimulator::DoWeeklySimulation(int,int)
 0000:00000000       cSC4WeatherSimulator::~cSC4WeatherSimulator()
 0000:00000000       cSC4WeatherSimulator::~cSC4WeatherSimulator()
 0000:00000000       cSC4WeatherSimulator::cSC4WeatherSimulator(void)
 0000:00000000       GZCOM_CreatecSC4WeatherSimulator(void)
 0000:00000000       MakeWaterAreaList(cISTETerrain *,std::vector<cRZRect,std::allocator<cRZRect>> &,uint,uint,uint,uint,uint,uint,cRZRect const*)
 0000:00000000       cSC4WeatherSimulator::RemoveWaterThatIsNotAtCityEdge(std::vector<cRZRect,std::allocator<cRZRect>> &)
 0000:00000000       cSC4WeatherSimulator::DoMonthlySimulation(int,int)
 0000:00000000       cSC4WeatherSimulator::DoCompleteSimulation(void)
 0000:00000000       cSC4WeatherSimulator::DoPostCityInit(void)
 0000:00000000       cSC4WeatherSimulator::DoMessage(cIGZMessage2 *)
 0000:00000000       cSC4WeatherSimulator::Write(cIGZOStream &)
 0000:00000000       cSC4WeatherSimulator::Read(cIGZIStream &)
 0000:00000000       cSC4WeatherSimulator::Init(void)
 0000:00000000 Abs   cSC4WeatherSimulator::GetHumidity(float,float) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::GetWindAtCell(int,int,float *) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::CelsiusToKelvin(float) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::KelvinToCelsius(float) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::GetMoistureValue(float,float) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::WriteMoistureValue(int,int,int) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::WriteTemperatureValue(int,int,int) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::GetMoistureValueMapPtr(std::vector<std::vector<uchar,std::allocator<uchar>>,std::allocator<std::vector<uchar,std::allocator<uchar>>>> *&) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::MoistureToMoistureValue(float) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::MoistureValueToMoisture(int) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::SetManualMoistureAddition(float,float,float,float,float) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::GetNewWindSimulationValues(void) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::TemperatureToTemperatureValue(float) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::CalculateSeaTemperatureModeration(std::vector<cRZRect,std::allocator<cRZRect>> const&,std::vector&<std::vector<bool,std::allocator<bool>>,std::allocator<std::allocator<bool>>>) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::AddRef(void) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::DoMessage(cGZMessage &) (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::~cSC4WeatherSimulator() (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::~cSC4WeatherSimulator() (.eh)
 0000:00000000 Abs   cSC4WeatherSimulator::~cSC4WeatherSimulator() (.eh)



[CorinaMarie 29,621]

1 hour ago, simmaster07 said:

Here's a link to an animated GIF (1.8MB) of the monthly moisture cycle in the original post.

Very nice! I'll edit this linky into my first post. (Tho, is it possible to double or even triple the delay between frames? It goes so fast.)

[vortext 573]

daah proper seasons in sc4 . . where's the drool smiley. .

Also,  maybe a good time for a reminder of Teirusu Rain Tool, since that actually does interact with the ingame water (i.e. raises water level) and I suspect it'll affect moisture as well. Unfortunately the water generated by the tool doesn't get saved but it might still offer some insights, or maybe even find a way to make it work properly?

[simmaster07 1,220]

34 minutes ago, CorinaMarie said:

Very nice! I'll edit this linky into my first post. (Tho, is it possible to double or even triple the delay between frames? It goes so fast.)

Done. https://i.imgur.com/FuDCNZE.gif

[CorinaMarie 29,621]

1 hour ago, simmaster07 said:

Done. https://i.imgur.com/FuDCNZE.gif

Perfect! I love it. I re-edited your quote in my first post. (It didn't work as a masked link, but I did the best I know how.)



And something I've later noticed: You know how it's said January is the wettest month? That is true starting on Jan 11. The pics I made are all on the 3rd of the month, so that's why it looks drier than February.

[vortext 573]

Hm,  I just noticed in the gif the moisture pattern for January is distinctly different compared to the pattern during the rest of the year. Wonder if that's always the case or just an artifact due to the simulation catching up given it's year zero.

[CorinaMarie 29,621]

1 hour ago, vortext said:

Hm,  I just noticed in the gif the moisture pattern for January is distinctly different compared to the pattern during the rest of the year. Wonder if that's always the case or just an artifact due to the simulation catching up given it's year zero.

That had just occurred to me too and I was editing the following into my post. Prolly overlapped with when you posted.

1 hour ago, CorinaMarie said:

And something I've later noticed: You know how it's said January is the wettest month? That is true starting on Jan 11. The pics I made are all on the 3rd of the month, so that's why it looks drier than February.



[MushyMushy 3,618]

I'm wondering if it's less connected to the day of the month than it is to the fact that these images were taken in year zero. Maybe January would look more like the others if the images were all taken after running the simulation for a year or two? I've noticed the simulation seems to take a minute after starting a new tile to "start" per say.

[CorinaMarie 29,621]

On 7/6/2016 at 11:46 AM, MushyMushy said:

I'm wondering if it's less connected to the day of the month than it is to the fact that these images were taken in year zero. Maybe January would look more like the others if the images were all taken after running the simulation for a year or two? I've noticed the simulation seems to take a minute after starting a new tile to "start" per say.

Yep. That's it exactly. Here we are on January 3, year 10:



Note: I've made a few edits to the bottom of my post # 1 above.

[NCGAIO 562]

Let's put it this way ...

It would be kind of unfair to other work (Lowkee33, enedi ....) and modest collaboration to some details that we will consider as something new and as already said  above  will be a little difficult that will find something that has never been done in the face the extensive number of moders who have worked in this game always seeking for just something that had never been done before.

Of course this does not mean that the matter not will be discussed again although I think very difficult even with the help of simmaster07 that we can have enabled  something more than what already exists in the game.

Moisture also referenced  at sea level and although there was a clear intention to allow more than a water level in the game some technical decisions for rendering the game made this unfeasible.



If CorinaMarie permit could post something a little more graphic to illustrate.

[CorinaMarie 29,621]

1 hour ago, NCGAIO said:

If Corina permit could post something a little more graphic to illustrate.

If you are asking for my permission you certainly have it. Take this thread in whatever direction you want to go with it.

I know I haven't created anything original here. It was simply something I found and decided to play with.
