Quick and dirty 1:1 texture tutorial

[SimHoTToDDy 2,938]

For those of you who want to add extra value to your textures by making them line up with parts of your model, you can make what is called (or, at least, what I call) a 1:1 texture. Meaning, you don't have a bitmap that tiles over and over or one that you need to stretch with a UVW map top get to the right size, but rather one that is designed for one specific place on a model and fits without tiling.

NOTE: To do this properly, you will need an image editor that uses layers. In this tutorial I use Photoshop, but GIMP and other like it are acceptable alternatives.

~~~~~

Lets say you have a little building with some extraordinary roof junk and a nice, but simple roof texture.

I call it "The No-Door Bar, Grille, and Dental Supply Emporium LLC."

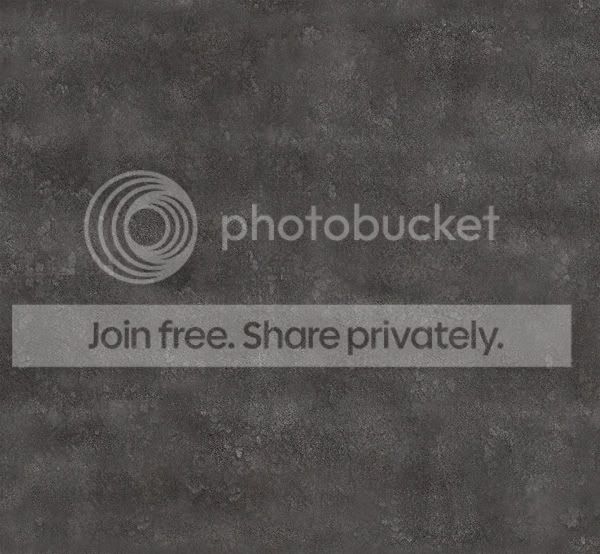

Lets say this is the bitmap you want to use for your roof. Its nice, but nothing special:

You put this in your BAT thread and some annoying HoTsim jerk keeps pestering you about better roof textures. You want to get back at this whiny shmuck and make a really nice roof material. So what do you do?

First things first. Take a nice big screenshot of the top (orthogonal) view of your model. I'd also turn off the "Show Standard map in viewport" option off or simply use the wire frame for this.

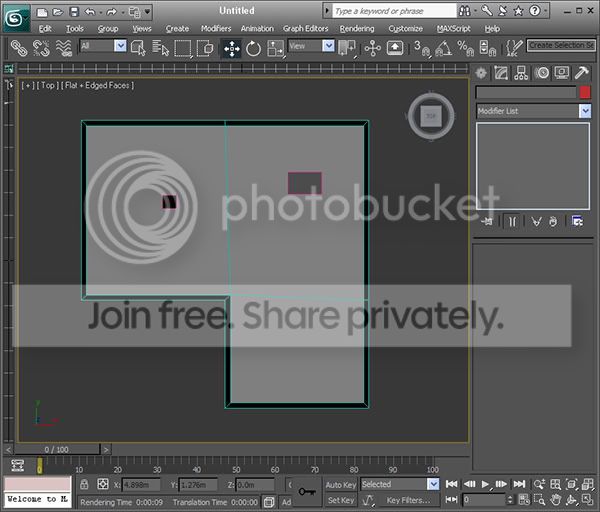

Yep, that's The No-Door Bar, Grille, and Dental Supply Emporium LLC in all it's glory.

You have a screenshot and thats all well and good, but what now? Post that baby into your roof texture bitmap (you may want to lower the opacity so you can see the texture under it)

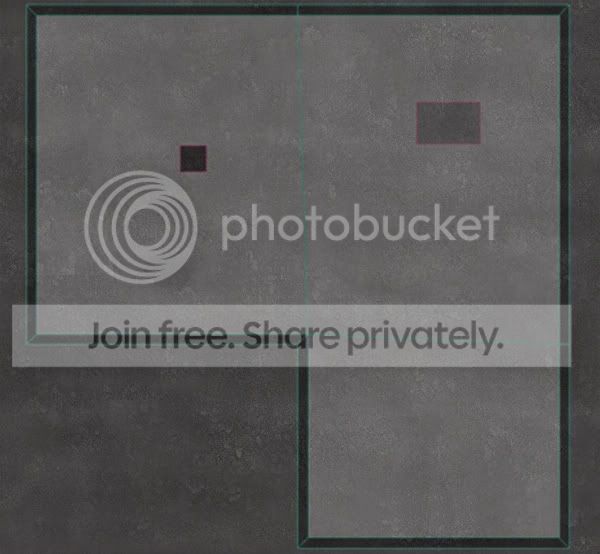

Then scale it up to fit the size of the bitmap.

NOTE: it is very important to hold SHIFT to constrain proportions while you scale. If you don't, then nothing will line up properly. Also, make sure no areas are cut off by the edge of the canvass after you have finish scaling.

After that's all said and done, crop the whole thing to the very edges of what is the roof in your model (that is, crop out the walls). You can ignore cut-outs in your model, but they can be handy for identifying the orientation of your model on the texture.

At this point you may want to save a version of this texture to check the placement. Back in your model, add a UVWmap to the roof object, but do not change the dimensions. The values generated should be the exact size of the object. If you had a 5x5x5m box and added a UVWmap, the UVW map should start out as 5x5m (5x5x5m when you select "box" within the modifier).

You may have to rotate or re-orient the bitmap using the gizmo on the UVWmap, but the size and X,Y,Z location should be correct.

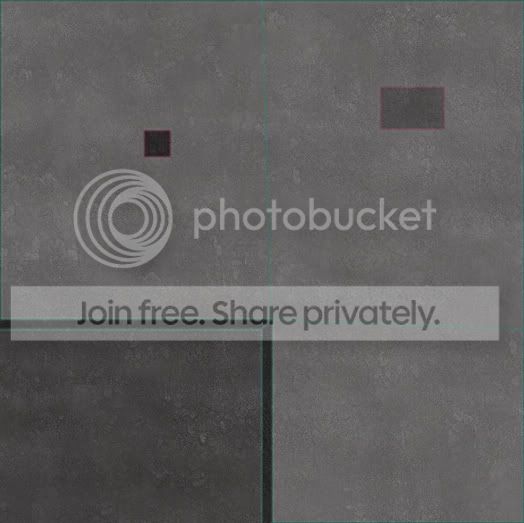

I hid the roof junk so I could see how well things lined up. If you look close you can see the faint green lines that were present on the bitmap as well.

You are one step closer to showing that BAT troll whats what, congratulations! Now comes the fun.

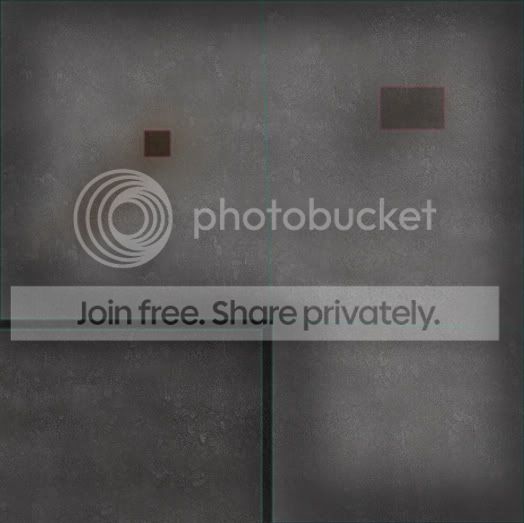

From here, you will want to add a new layer OVER both the base/source bitmap and the screenshot you added, and only paint on that layer (see HERE to look at what order you should have). Using your screenshot as a guide, start painting along edges, around junk, and anything else you want with a good brush with low opacity and flow (so you don't go overboard). Add stains, rust marks, replaced roofing sections, or whatever else you want. You should end up with something like this:

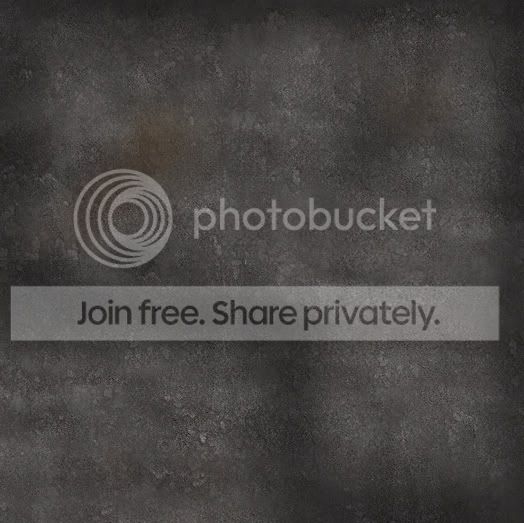

Obviously you want to turn off your guide before you save this and apply it to your model. The final bitmap you will use will be like this:

Unhide your roof junk and see how it looks!

Oh No-Door Bar, Grille, and Dental Supply Emporium LLC., you have never looked better! That will show that 'em!

~~~~~

Obviously my result isn't perfect and, like your attempts, should be refined further. You should, however, get the right idea and be able to try this on your own. You should try several things when trying to achieve effects on the material before calling it a day. Try different layer styles like overlay or try using multiple layers. You never know how something is going to turn out until you hit the preview button.

I threw this together in a rush before work, but I hope it is helpful enough to do some good. Cheers!
