SC4 installation on Win Vista Business help please?

[Pete4350 9]

I need help with installation on Windows OS Vista Business please?

Im on the older side of 50+ but have a pretty good idea on how things work.

i use a Windows based PC for older games and my main computer is a MacBook Air.

I've tried all sorts of ways to instal SC4 Deluxe, but I just can't get it to start.

[CorinaMarie 29,894]

I'm assuming you are using the CD version. If so, it's likely that MicroSloth's KB3086255 DRM Borker Patch is the culprit. This linky explains what it is and what to do about it.

Here's the relevant part:

"... open a Command Prompt window as Administrator. (Open the Start menu, search for “Command Prompt,” right-click the Command Prompt shortcut, and select Run as Administrator.) Run the “sc start secdrv” command to start the service, and run the “sc stop secdrv” command to stop it afterwards."

^ Bold added.



[Compdude787 916]

If you'd rather not deal with Command Prompt each time you start the game, you can get a digital version of the game off of Steam, Origin, GOG, or Amazon that doesn't require a CD to run. If you keep an eye out, those sites will have the game on sale for as low as $5.

[Pete4350 9]

Thank you Indianaoplis and Seattle for the info. When I finish painting our lounge room I'll get right onto it.

Kind regards,

Australia.

[Pete4350 9]

Rightio, this is what's happened since the last entry.

i downloaded the game through Steam, and Origin, but because the computer I will be using the game on is offline, neither can file transfer with flash drives to the offline PC, I managed to get refunds from both.

I took on the suggestion from CorinaMarie because the software I have is a CD-ROM. I followed your directions but it came up at an error: "StartService FAILED 1058: The service cannot be started, either because it is disabled or because it has no enabled devices associated with it."



So, any further advise would be appreciated. I'm not having much luck here, but we will persevere!



Thank you.

[CorinaMarie 29,894]

I wish I had a Vista install to test with so I could be more helpful.

So, as part of MicroSloth's MS15-097 description of some graphics thinger patch they added a bulletin that has a bit more detail. (Scroll down a bit on that page.) It could be you need to do the: sc config secdrv start=auto before the sc start secdrv since the first one says it's to enable the driver's service.

Another possible option is to simply have Windoze uninstall the KB3086255 patch. I believe that's done thru add/remove programs and, iirc, you have to click a checkbox that says something like: show windows components or such.

And, perhaps, if you haven't used your comp too much since the update was installed you might still have a restore point prior to it you could revert to. (This prolly won't be there unless you have a lot of extra hard drive space. The more you have the more restore points it can store. I believe the default is a percentage of the free space.)



Edit: It just occurred to me that being a Business Edition the secdrv thinger might not even be installed. Of those commands about starting and stopping they, themselves, would be the executable programs and knowing MS's cryptic messages philosophy it might be a way of saying it didn't find it. Try doing a whole hard drive search for secdrv.sys. (Mine's in C:\Windows\System32\Drivers, but that's XP Pro.)

[Pete4350 9]

Thank you for your help CorinaMarie. I'm going to format my hard drive and install Windows XP. It seems to be the only solution and XP is a very stable platform.



[CorinaMarie 29,894]

1 hour ago, Pete4350 said:

Thank you for your help CorinaMarie. I'm going to format my hard drive and install Windows XP. It seems to be the only solution and XP is a very stable platform.



Woot! That's the OS I use (Pro version tho) so any questions you have for it, I might be able to help whole bunches more.



[Pete4350 9]

Rightio CorinaMarie, a few weeks have passed and I've got Win XP Pro installed, and purchased a new version of Sim City 4, and guess what? Another error!

The error that appeared is a "Hardware Driver Error" Quote: Could not initialise Direct Draw.

Any ideas what that means?

Thanks.

[CorinaMarie 29,894]

Yep, I do have an idea. Direct Draw is a part of the DirectX API.

Get it here: DirectX 9.0c End-User Runtime

Note: There are later versions available. 9.0c is the version I'm using with my XP Pro and SimCity 4. If during the install there are any questions about letting it check the web for updates, do not let it do so. This is a case where you prolly don't want the latest version inasmuch as it may not work as well.

[rsc204 21,866]

Actually the latest version would be just fine. All versions of DirectX include full backwards compatibility for all prior versions. Therefore the latest should be the only one you ever need. That said, since your running XP, I don't think you can go any higher than 9.0c anyway, making my argument redundant .

[CorinaMarie 29,894]

1 hour ago, rsc204 said:

That said, since your running XP, I don't think you can go any higher than 9.0c anyway, making my argument redundant .

So, my recommendation is right for the wrong reason.

[Pete4350 9]

Okay, I ended up downloading the DirectX 9.0 redist because the computer the game is on in not online. The "issue" is still there with the error box stating "Could not initialise Direct Draw."

Persevering......any more idea's, please?



[CorinaMarie 29,894]

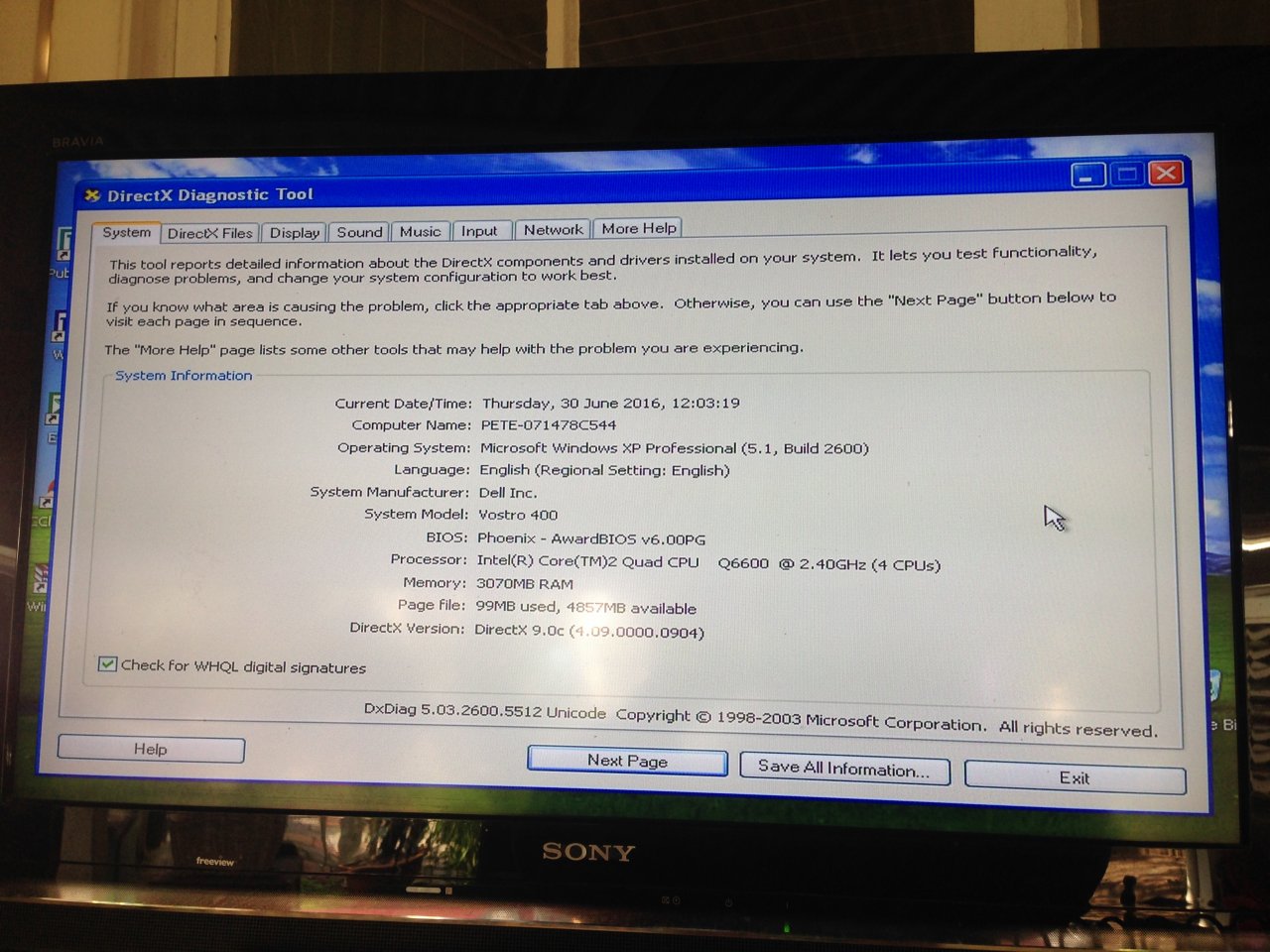

Hmm. Ok, as the next step let's see what the diagnostic program has to say about the DirectX install. Let's do:

1. Click Start Button
2. Click Run...
3. Type: dxdiag
4. Click Ok
5. Click Save All Information
6. Save the file to your desktop or wherever you want

It's a just a standard text document. Cut and paste its contents into a post here or attach it to a post.

Edit: For reference, here's what mine looks like:

Spoiler

------------------
System Information
------------------
Time of this report: 6/28/2016, 01:43:14
       Machine name: CORI-2015-01-18
   Operating System: Windows XP Professional (5.1, Build 2600) Service Pack 3 (2600.xpsp_sp3_qfe.130704-0421)
           Language: English (Regional Setting: English)
System Manufacturer: Dell Computer Corporation
       System Model: OptiPlex GX270
               BIOS: Phoenix ROM BIOS PLUS Version 1.10 A03
          Processor: Intel(R) Pentium(R) 4 CPU 2.80GHz
             Memory: 2046MB RAM
          Page File: 118MB used, 2546MB available
        Windows Dir: C:\WINDOWS
    DirectX Version: DirectX 9.0c (4.09.0000.0904)
DX Setup Parameters: Not found
     DxDiag Version: 5.03.2600.5512 32bit Unicode

------------
DxDiag Notes
------------
  DirectX Files Tab: No problems found.
      Display Tab 1: No problems found.
        Sound Tab 1: No problems found.
          Music Tab: No problems found.
          Input Tab: No problems found.
        Network Tab: No problems found.

--------------------
DirectX Debug Levels
--------------------
Direct3D:    0/4 (n/a)
DirectDraw:  0/4 (retail)
DirectInput: 0/5 (n/a)
DirectMusic: 0/5 (n/a)
DirectPlay:  0/9 (retail)
DirectSound: 0/5 (retail)
DirectShow:  0/6 (retail)

---------------
Display Devices
---------------
        Card name: NVIDIA GeForce FX 5600 (Microsoft Corporation)
     Manufacturer: NVIDIA
        Chip type: GeForce FX 5600
         DAC type: Integrated RAMDAC
       Device Key: Enum\PCI\VEN_10DE&DEV_0312&SUBSYS_91231462&REV_A1
   Display Memory: 128.0 MB
     Current Mode: 1024 x 768 (32 bit) (60Hz)
          Monitor: Plug and Play Monitor
  Monitor Max Res: 1600,1200
      Driver Name: nv4_disp.dll
   Driver Version: 6.14.0010.5673 (English)
      DDI Version: 9 (or higher)
Driver Attributes: Final Retail
 Driver Date/Size: 4/14/2008 05:42:04, 4274816 bytes
      WHQL Logo'd: n/a
  WHQL Date Stamp: n/a
              VDD: n/a
         Mini VDD: nv4_mini.sys
    Mini VDD Date: 4/13/2008 22:04:32, 1897408 bytes
Device Identifier: {D7B71E3E-4052-11CF-FB61-29B100C2CB35}
        Vendor ID: 0x10DE
        Device ID: 0x0312
        SubSys ID: 0x91231462
      Revision ID: 0x00A1
      Revision ID: 0x00A1
      Video Accel: ModeMPEG2_A ModeMPEG2_B ModeMPEG2_C ModeMPEG2_D ModeWMV9_B ModeWMV9_A
 Deinterlace Caps: {212DC722-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,2) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
                   {212DC723-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_MedianFiltering
                   {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YUY2,YUY2) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch
                   {212DC722-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,2) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
                   {212DC723-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_MedianFiltering
                   {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(UYVY,UYVY) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch
                   {212DC722-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,2) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
                   {212DC723-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_MedianFiltering
                   {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(YV12,0x32315659) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch
                   {212DC722-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,2) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_PixelAdaptive
                   {212DC723-3235-44A4-BD29-E1652BBCC71C}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,1) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_MedianFiltering
                   {335AA36E-7884-43A4-9C91-7F87FAF3E37E}: Format(In/Out)=(NV12,0x3231564e) Frames(Prev/Fwd/Back)=(0,0,0) Caps=VideoProcess_YUV2RGB VideoProcess_StretchX VideoProcess_StretchY DeinterlaceTech_BOBVerticalStretch
         Registry: OK
     DDraw Status: Enabled
       D3D Status: Enabled
       AGP Status: Enabled
DDraw Test Result: Not run
 D3D7 Test Result: Not run
 D3D8 Test Result: Not run
 D3D9 Test Result: Not run

-------------
Sound Devices
-------------
            Description: SoundMAX Digital Audio
 Default Sound Playback: Yes
 Default Voice Playback: Yes
            Hardware ID: PCI\VEN_8086&DEV_24D5&SUBSYS_01511028&REV_02
        Manufacturer ID: 1
             Product ID: 100
                   Type: WDM
            Driver Name: smwdm.sys
         Driver Version: 5.12.0001.3555 (English)
      Driver Attributes: Final Retail
            WHQL Logo'd: n/a
          Date and Size: 2/28/2003 09:17:18, 545024 bytes
            Other Files:
        Driver Provider: Analog Devices
         HW Accel Level: Full
              Cap Flags: 0x0
    Min/Max Sample Rate: 0, 0
Static/Strm HW Mix Bufs: 0, 0
 Static/Strm HW 3D Bufs: 0, 0
              HW Memory: 0
       Voice Management: No
 EAX(tm) 2.0 Listen/Src: No, No
   I3DL2(tm) Listen/Src: No, No
Sensaura(tm) ZoomFX(tm): No
               Registry: OK
      Sound Test Result: Not run

---------------------
Sound Capture Devices
---------------------
            Description: SoundMAX Digital Audio
  Default Sound Capture: Yes
  Default Voice Capture: Yes
            Driver Name: smwdm.sys
         Driver Version: 5.12.0001.3555 (English)
      Driver Attributes: Final Retail
          Date and Size: 2/28/2003 09:17:18, 545024 bytes
              Cap Flags: 0x0
           Format Flags: 0x0

-----------
DirectMusic
-----------
        DLS Path: C:\WINDOWS\SYSTEM32\drivers\GM.DLS
     DLS Version: 1.00.0016.0002
    Acceleration: n/a
           Ports: Microsoft Synthesizer, Software (Not Kernel Mode), Output, DLS, Internal, Default Port
                  SoundMAX Digital Audio, Software (Kernel Mode), Output, DLS, Internal
                  Microsoft MIDI Mapper [Emulated], Hardware (Not Kernel Mode), Output, No DLS, Internal
                  Microsoft GS Wavetable SW Synth [Emulated], Hardware (Not Kernel Mode), Output, No DLS, Internal
        Registry: OK
     Test Result: Not run

-------------------
DirectInput Devices
-------------------
      Device Name: Mouse
         Attached: 1
    Controller ID: n/a
Vendor/Product ID: n/a
        FF Driver: n/a

      Device Name: Keyboard
         Attached: 1
    Controller ID: n/a
Vendor/Product ID: n/a
        FF Driver: n/a

Poll w/ Interrupt: No
         Registry: OK

-----------
USB Devices
-----------
+ USB Root Hub
| Vendor/Product ID: 0x8086, 0x24D2
| Matching Device ID: usb\root_hub
| Service: usbhub
| Driver: usbhub.sys, 4/14/2008 00:15:38, 59520 bytes
| Driver: usbd.sys, 8/8/2013 19:55:06, 5376 bytes

----------------
Gameport Devices
----------------

------------
PS/2 Devices
------------
+ Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
| Matching Device ID: *pnp0303
| Service: i8042prt
| Driver: i8042prt.sys, 4/14/2008 00:48:02, 52480 bytes
| Driver: kbdclass.sys, 4/14/2008 00:09:48, 24576 bytes
|
+ Terminal Server Keyboard Driver
| Matching Device ID: root\rdp_kbd
| Upper Filters: kbdclass
| Service: TermDD
| Driver: termdd.sys, 4/14/2008 05:43:22, 40840 bytes
| Driver: kbdclass.sys, 4/14/2008 00:09:48, 24576 bytes
|
+ PS/2 Compatible Mouse
| Matching Device ID: *pnp0f13
| Service: i8042prt
| Driver: i8042prt.sys, 4/14/2008 00:48:02, 52480 bytes
| Driver: mouclass.sys, 4/14/2008 00:09:48, 23040 bytes
|
+ Terminal Server Mouse Driver
| Matching Device ID: root\rdp_mou
| Upper Filters: mouclass
| Service: TermDD
| Driver: termdd.sys, 4/14/2008 05:43:22, 40840 bytes
| Driver: mouclass.sys, 4/14/2008 00:09:48, 23040 bytes

----------------------------
DirectPlay Service Providers
----------------------------
DirectPlay8 Modem Service Provider - Registry: OK, File: dpnet.dll (5.03.2600.6311)
DirectPlay8 Serial Service Provider - Registry: OK, File: dpnet.dll (5.03.2600.6311)
DirectPlay8 IPX Service Provider - Registry: OK, File: dpnet.dll (5.03.2600.6311)
DirectPlay8 TCP/IP Service Provider - Registry: OK, File: dpnet.dll (5.03.2600.6311)
Internet TCP/IP Connection For DirectPlay - Registry: OK, File: dpwsockx.dll (5.03.2600.5512)
IPX Connection For DirectPlay - Registry: OK, File: dpwsockx.dll (5.03.2600.5512)
Modem Connection For DirectPlay - Registry: OK, File: dpmodemx.dll (5.03.2600.5512)
Serial Connection For DirectPlay - Registry: OK, File: dpmodemx.dll (5.03.2600.5512)

DirectPlay Voice Wizard Tests: Full Duplex: Not run, Half Duplex: Not run, Mic: Not run
DirectPlay Test Result: Not run
Registry: OK

-------------------
DirectPlay Adapters
-------------------
DirectPlay8 Serial Service Provider: COM1
DirectPlay8 TCP/IP Service Provider: MS TCP Loopback interface - IPv4 -

-----------------------
DirectPlay Voice Codecs
-----------------------
Voxware VR12 1.4kbit/s
Voxware SC06 6.4kbit/s
Voxware SC03 3.2kbit/s
MS-PCM 64 kbit/s
MS-ADPCM 32.8 kbit/s
Microsoft GSM 6.10 13 kbit/s
TrueSpeech(TM) 8.6 kbit/s

-------------------------
DirectPlay Lobbyable Apps
-------------------------

------------------------
Disk & DVD/CD-ROM Drives
------------------------
      Drive: C:
 Free Space: 3.8 GB
Total Space: 19.1 GB
File System: NTFS
      Model: IC35L020AVER07-0

      Drive: D:
      Model: SAMSUNG CD-ROM SN-124
     Driver: c:\windows\system32\drivers\cdrom.sys, 5.01.2600.5512 (English), 4/14/2008 00:10:48, 62976 bytes

--------------
System Devices
--------------
     Name: Intel(R) 82865G/PE/P/GV/82848P Processor to AGP Controller - 2571
Device ID: PCI\VEN_8086&DEV_2571&SUBSYS_00000000&REV_02\3&172E68DD&0&08
   Driver: C:\WINDOWS\system32\DRIVERS\AGP440.SYS, 5.01.2600.5512 (English), 4/14/2008 00:06:40, 42368 bytes

     Name: Intel(R) 82865G/PE/P/GV/82848P Processor to I/O Controller - 2570
Device ID: PCI\VEN_8086&DEV_2570&SUBSYS_00000000&REV_02\3&172E68DD&0&00
   Driver: n/a

     Name: Intel(R) 82801EB USB Universal Host Controller - 24DE
Device ID: PCI\VEN_8086&DEV_24DE&SUBSYS_01511028&REV_02\3&172E68DD&0&EB
   Driver: C:\WINDOWS\system32\drivers\usbuhci.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:36, 20608 bytes
   Driver: C:\WINDOWS\system32\drivers\usbport.sys, 5.01.2600.6437 (English), 8/8/2013 19:55:08, 144128 bytes
   Driver: C:\WINDOWS\system32\usbui.dll, 5.01.2600.5512 (English), 4/14/2008 05:42:10, 74240 bytes
   Driver: C:\WINDOWS\system32\drivers\usbhub.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:38, 59520 bytes

     Name: Intel(R) 82801EB USB2 Enhanced Host Controller - 24DD
Device ID: PCI\VEN_8086&DEV_24DD&SUBSYS_01511028&REV_02\3&172E68DD&0&EF
   Driver: C:\WINDOWS\system32\drivers\usbehci.sys, 5.01.2600.5778 (English), 3/18/2009 06:02:23, 30336 bytes
   Driver: C:\WINDOWS\system32\drivers\usbport.sys, 5.01.2600.6437 (English), 8/8/2013 19:55:08, 144128 bytes
   Driver: C:\WINDOWS\system32\usbui.dll, 5.01.2600.5512 (English), 4/14/2008 05:42:10, 74240 bytes
   Driver: C:\WINDOWS\system32\drivers\usbhub.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:38, 59520 bytes
   Driver: C:\WINDOWS\system32\hccoin.dll, 5.01.2600.5512 (English), 4/14/2008 05:41:56, 7168 bytes

     Name: Intel(R) 82801EB Ultra ATA Storage Controllers - 24DB
Device ID: PCI\VEN_8086&DEV_24DB&SUBSYS_01511028&REV_02\3&172E68DD&0&F9
   Driver: C:\WINDOWS\system32\DRIVERS\intelide.sys, 5.01.2600.5512 (English), 4/14/2008 00:10:30, 5504 bytes
   Driver: C:\WINDOWS\system32\DRIVERS\pciidex.sys, 5.01.2600.5512 (English), 4/14/2008 00:10:30, 24960 bytes
   Driver: C:\WINDOWS\system32\DRIVERS\atapi.sys, 5.01.2600.5512 (English), 4/14/2008 00:10:32, 96512 bytes

     Name: Intel(R) 82801EB USB Universal Host Controller - 24D7
Device ID: PCI\VEN_8086&DEV_24D7&SUBSYS_01511028&REV_02\3&172E68DD&0&EA
   Driver: C:\WINDOWS\system32\drivers\usbuhci.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:36, 20608 bytes
   Driver: C:\WINDOWS\system32\drivers\usbport.sys, 5.01.2600.6437 (English), 8/8/2013 19:55:08, 144128 bytes
   Driver: C:\WINDOWS\system32\usbui.dll, 5.01.2600.5512 (English), 4/14/2008 05:42:10, 74240 bytes
   Driver: C:\WINDOWS\system32\drivers\usbhub.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:38, 59520 bytes

     Name: SoundMAX Integrated Digital Audio
Device ID: PCI\VEN_8086&DEV_24D5&SUBSYS_01511028&REV_02\3&172E68DD&0&FD
   Driver: C:\WINDOWS\system32\ksuser.dll, 5.03.2600.5512 (English), 4/14/2008 05:41:58, 4096 bytes
   Driver: C:\WINDOWS\system32\ksproxy.ax, 5.03.2600.5512 (English), 4/14/2008 05:42:44, 129536 bytes
   Driver: C:\WINDOWS\system32\drivers\ks.sys, 5.03.2600.5512 (English), 4/14/2008 00:46:38, 141056 bytes
   Driver: C:\WINDOWS\system32\drivers\drmk.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:16, 60160 bytes
   Driver: C:\WINDOWS\system32\drivers\portcls.sys, 5.01.2600.5512 (English), 4/14/2008 00:49:42, 146048 bytes
   Driver: C:\WINDOWS\system32\drivers\stream.sys, 5.03.2600.5512 (English), 4/14/2008 00:15:16, 49408 bytes
   Driver: C:\WINDOWS\system32\wdmaud.drv, 5.01.2600.5512 (English), 4/14/2008 05:42:46, 23552 bytes
   Driver: C:\WINDOWS\system32\drivers\smwdm.sys, 5.12.0001.3555 (English), 2/28/2003 09:17:18, 545024 bytes
   Driver: C:\WINDOWS\system32\drivers\smsens.sys, 5.12.0001.0000 (English), 10/28/2002 11:26:06, 3744 bytes
   Driver: C:\WINDOWS\system32\drivers\aeaudio.sys, 1.00.0000.0000 (English), 4/1/2002 13:15:00, 4816 bytes
   Driver: C:\WINDOWS\system32\a3d.dll, 4.12.0001.2008 (English), 9/19/2001 13:32:26, 720896 bytes

     Name: Intel(R) 82801EB USB Universal Host Controller - 24D4
Device ID: PCI\VEN_8086&DEV_24D4&SUBSYS_01511028&REV_02\3&172E68DD&0&E9
   Driver: C:\WINDOWS\system32\drivers\usbuhci.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:36, 20608 bytes
   Driver: C:\WINDOWS\system32\drivers\usbport.sys, 5.01.2600.6437 (English), 8/8/2013 19:55:08, 144128 bytes
   Driver: C:\WINDOWS\system32\usbui.dll, 5.01.2600.5512 (English), 4/14/2008 05:42:10, 74240 bytes
   Driver: C:\WINDOWS\system32\drivers\usbhub.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:38, 59520 bytes

     Name: Intel(R) 82801EB SMBus Controller - 24D3
Device ID: PCI\VEN_8086&DEV_24D3&SUBSYS_01511028&REV_02\3&172E68DD&0&FB
   Driver: n/a

     Name: Intel(R) 82801EB USB Universal Host Controller - 24D2
Device ID: PCI\VEN_8086&DEV_24D2&SUBSYS_01511028&REV_02\3&172E68DD&0&E8
   Driver: C:\WINDOWS\system32\drivers\usbuhci.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:36, 20608 bytes
   Driver: C:\WINDOWS\system32\drivers\usbport.sys, 5.01.2600.6437 (English), 8/8/2013 19:55:08, 144128 bytes
   Driver: C:\WINDOWS\system32\usbui.dll, 5.01.2600.5512 (English), 4/14/2008 05:42:10, 74240 bytes
   Driver: C:\WINDOWS\system32\drivers\usbhub.sys, 5.01.2600.5512 (English), 4/14/2008 00:15:38, 59520 bytes

     Name: Intel(R) 82801EB Ultra ATA Storage Controllers - 24D1
Device ID: PCI\VEN_8086&DEV_24D1&SUBSYS_01511028&REV_02\3&172E68DD&0&FA
   Driver: C:\WINDOWS\system32\DRIVERS\intelide.sys, 5.01.2600.5512 (English), 4/14/2008 00:10:30, 5504 bytes
   Driver: C:\WINDOWS\system32\DRIVERS\pciidex.sys, 5.01.2600.5512 (English), 4/14/2008 00:10:30, 24960 bytes
   Driver: C:\WINDOWS\system32\DRIVERS\atapi.sys, 5.01.2600.5512 (English), 4/14/2008 00:10:32, 96512 bytes

     Name: Intel(R) 82801EB LPC Interface Controller - 24D0
Device ID: PCI\VEN_8086&DEV_24D0&SUBSYS_00000000&REV_02\3&172E68DD&0&F8
   Driver: C:\WINDOWS\system32\DRIVERS\isapnp.sys, 5.01.2600.5512 (English), 4/14/2008 00:06:42, 37248 bytes

     Name: Intel(R) 82801 PCI Bridge - 244E
Device ID: PCI\VEN_8086&DEV_244E&SUBSYS_00000000&REV_C2\3&172E68DD&0&F0
   Driver: C:\WINDOWS\system32\DRIVERS\pci.sys, 5.01.2600.5512 (English), 4/14/2008 00:06:46, 68224 bytes

     Name: Intel(R) PRO/1000 MT Network Connection
Device ID: PCI\VEN_8086&DEV_100E&SUBSYS_01511028&REV_02\4&1C660DD6&0&60F0
   Driver: C:\WINDOWS\system32\DRIVERS\e1000325.sys, 8.06.0011.0000 (English), 6/29/2005 09:49:04, 163840 bytes
   Driver: C:\WINDOWS\system32\Prounstl.exe, 8.00.0007.0000 (English), 6/15/2005 13:27:42, 126976 bytes
   Driver: C:\WINDOWS\system32\e1000325.din, 5/18/2005 16:37:34, 2795 bytes
   Driver: C:\WINDOWS\system32\NicCo32.dll, 1.00.0005.0000 (English), 6/14/2005 22:08:42, 20480 bytes
   Driver: C:\WINDOWS\system32\NicIn32.dll, 9.00.0002.0000 (English), 5/19/2005 07:28:12, 21504 bytes
   Driver: C:\WINDOWS\system32\e1000msg.dll, 8.06.0010.0000 (English), 7/6/2005 16:12:00, 163840 bytes
   Driver: C:\WINDOWS\system32\EtCo32.dll, 2.02.0001.0000 (English), 6/23/2005 10:59:00, 17408 bytes

     Name: NVIDIA GeForce FX 5600 (Microsoft Corporation)
Device ID: PCI\VEN_10DE&DEV_0312&SUBSYS_91231462&REV_A1\4&1246FE7B&0&0008
   Driver: C:\WINDOWS\system32\DRIVERS\nv4_mini.sys, 6.14.0010.5673 (English), 4/13/2008 22:04:32, 1897408 bytes
   Driver: C:\WINDOWS\system32\nv4_disp.dll, 6.14.0010.5673 (English), 4/14/2008 05:42:04, 4274816 bytes

------------------
DirectX Components
------------------
   ddraw.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:52 279552 bytes
 ddrawex.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:52 27136 bytes
   dxapi.sys: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 10496 bytes
    d3d8.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:52 1179648 bytes
 d3d8thk.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:52 8192 bytes
    d3d9.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:52 1689088 bytes
   d3dim.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 436224 bytes
d3dim700.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:52 824320 bytes
 d3dramp.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 590336 bytes
   d3drm.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 350208 bytes
  d3dxof.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 47616 bytes
d3dpmesh.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 34816 bytes
   dplay.dll: 5.00.2134.0001 English Final Retail 8/4/2004 05:00:00 33040 bytes
  dplayx.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 229888 bytes
dpmodemx.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 23552 bytes
 dpwsock.dll: 5.00.2134.0001 English Final Retail 8/4/2004 05:00:00 42768 bytes
dpwsockx.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 57344 bytes
dplaysvr.exe: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:18 29696 bytes
  dpnsvr.exe: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:18 17920 bytes
   dpnet.dll: 5.03.2600.6311 English Final Retail 11/1/2012 21:02:42 375296 bytes
dpnlobby.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:39:22 3072 bytes
 dpnaddr.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:39:20 3072 bytes
 dpvoice.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 212480 bytes
dpvsetup.exe: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:20 83456 bytes
  dpvvox.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 116736 bytes
  dpvacm.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 21504 bytes
dpnhpast.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 35328 bytes
dpnhupnp.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 60928 bytes
dpserial.dll: 5.00.2134.0001 English Final Retail 8/4/2004 05:00:00 53520 bytes
  dinput.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 158720 bytes
 dinput8.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 181760 bytes
   dimap.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 44032 bytes
diactfrm.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 394240 bytes
     joy.cpl: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:42 68608 bytes
   gcdef.dll: 5.01.2600.0000 English Final Retail 8/4/2004 05:00:00 76800 bytes
     pid.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:04 35328 bytes
  dsound.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 367616 bytes
dsound3d.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 1293824 bytes
  dswave.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 19456 bytes
   dsdmo.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 181248 bytes
dsdmoprp.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 71680 bytes
  dmusic.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 104448 bytes
  dmband.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 28672 bytes
dmcompos.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 61440 bytes
   dmime.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 181248 bytes
dmloader.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 35840 bytes
 dmstyle.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 105984 bytes
 dmsynth.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 103424 bytes
dmscript.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 82432 bytes
  system.dll: 1.01.4322.2503 English Final Retail 3/29/2015 19:37:29 1232896 bytes
Microsoft.DirectX.Direct3D.dll: 9.05.0132.0000 English Final Retail 5/2/2016 06:25:06 473600 bytes
Microsoft.DirectX.Direct3DX.dll: 5.04.0000.3900 English Final Retail 5/2/2016 06:25:01 2676224 bytes
Microsoft.DirectX.Direct3DX.dll: 9.04.0091.0000 English Final Retail 5/2/2016 06:25:01 2846720 bytes
Microsoft.DirectX.Direct3DX.dll: 9.05.0132.0000 English Final Retail 5/2/2016 06:25:02 563712 bytes
Microsoft.DirectX.Direct3DX.dll: 9.06.0168.0000 English Final Retail 5/2/2016 06:25:02 567296 bytes
Microsoft.DirectX.Direct3DX.dll: 9.07.0239.0000 English Final Retail 5/2/2016 06:25:03 576000 bytes
Microsoft.DirectX.Direct3DX.dll: 9.08.0299.0000 English Final Retail 5/2/2016 06:25:03 577024 bytes
Microsoft.DirectX.Direct3DX.dll: 9.09.0376.0000 English Final Retail 5/2/2016 06:25:03 577536 bytes
Microsoft.DirectX.Direct3DX.dll: 9.10.0455.0000 English Final Retail 5/2/2016 06:25:04 577536 bytes
Microsoft.DirectX.Direct3DX.dll: 9.11.0519.0000 English Final Retail 5/2/2016 06:25:04 578560 bytes
Microsoft.DirectX.Direct3DX.dll: 9.12.0589.0000 English Final Retail 5/2/2016 06:25:06 578560 bytes
Microsoft.DirectX.DirectDraw.dll: 5.04.0000.2904 English Final Retail 5/2/2016 06:25:06 145920 bytes
Microsoft.DirectX.DirectInput.dll: 5.04.0000.2904 English Final Retail 5/2/2016 06:25:06 159232 bytes
Microsoft.DirectX.DirectPlay.dll: 5.04.0000.2904 English Final Retail 5/2/2016 06:25:06 364544 bytes
Microsoft.DirectX.DirectSound.dll: 5.04.0000.2904 English Final Retail 5/2/2016 06:25:06 178176 bytes
Microsoft.DirectX.AudioVideoPlayback.dll: 5.04.0000.2904 English Final Retail 5/2/2016 06:25:05 53248 bytes
Microsoft.DirectX.Diagnostics.dll: 5.04.0000.2904 English Final Retail 5/2/2016 06:25:05 12800 bytes
Microsoft.DirectX.dll: 5.04.0000.2904 English Final Retail 5/2/2016 06:25:04 223232 bytes
   dx7vb.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 619008 bytes
   dx8vb.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 1227264 bytes
 dxdiagn.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 2113536 bytes
   mfc40.dll: 4.01.0000.6151 English Beta Retail 9/18/2010 01:53:25 954368 bytes
   mfc42.dll: 6.02.8081.0000 English Final Retail 2/8/2011 08:33:55 978944 bytes
 wsock32.dll: 5.01.2600.5512 English Final Retail 4/14/2008 05:42:12 22528 bytes
amstream.dll: 6.05.2600.5512 English Final Retail 4/14/2008 05:41:50 70656 bytes
 devenum.dll: 6.05.2600.5512 English Final Retail 4/14/2008 05:41:52 59904 bytes
  dxmasf.dll: 6.04.0009.1133 English Final Retail 4/14/2008 05:41:54 498742 bytes
mciqtz32.dll: 6.05.2600.5512 English Final Retail 4/14/2008 05:41:58 35328 bytes
 mpg2splt.ax: 6.05.2600.6333 English Final Retail 1/2/2013 01:49:10 148992 bytes
   msdmo.dll: 6.05.2600.5512 English Final Retail 4/14/2008 05:42:00 14336 bytes
  encapi.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:54 20480 bytes
    qasf.dll: 11.00.5721.5145 English Final Retail 10/18/2006 21:47:18 211456 bytes
    qcap.dll: 6.05.2600.5512 English Final Retail 4/14/2008 05:42:04 192512 bytes
     qdv.dll: 6.05.2600.5512 English Final Retail 4/14/2008 05:42:04 279040 bytes
    qdvd.dll: 6.05.2600.6169 English Final Retail 11/3/2011 10:28:36 386048 bytes
   qedit.dll: 6.05.2600.6512 English Final Retail 2/5/2014 03:55:04 562688 bytes
qedwipes.dll: 6.05.2600.5512 English Final Retail 4/13/2008 22:51:34 733696 bytes
  quartz.dll: 6.05.2600.6333 English Final Retail 1/2/2013 01:49:10 1292288 bytes
 strmdll.dll: 4.01.0000.3938 English Final Retail 8/26/2009 03:00:21 247326 bytes
 iac25_32.ax: 2.00.0005.0053 English Final Retail 4/14/2008 05:42:44 199680 bytes
  ir41_32.ax: 4.51.0016.0003 English Final Retail 4/14/2008 05:42:44 848384 bytes
 ir41_qc.dll: 4.30.0062.0002 English Final Retail 4/14/2008 05:41:56 120320 bytes
ir41_qcx.dll: 4.30.0064.0001 English Final Retail 4/14/2008 05:41:56 338432 bytes
 ir50_32.dll: 5.2562.0015.0055 English Final Retail 4/14/2008 05:41:56 755200 bytes
 ir50_qc.dll: 5.00.0063.0048 English Final Retail 4/14/2008 05:41:56 200192 bytes
ir50_qcx.dll: 5.00.0064.0048 English Final Retail 4/14/2008 05:41:56 183808 bytes
   ivfsrc.ax: 5.10.0002.0051 English Final Retail 4/14/2008 05:42:44 154624 bytes
mswebdvd.dll: 6.05.2600.5857 English Final Retail 8/5/2009 04:01:48 204800 bytes
      ks.sys: 5.03.2600.5512 English Final Retail 4/14/2008 00:46:38 141056 bytes
  ksproxy.ax: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:44 129536 bytes
  ksuser.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:41:58 4096 bytes
  stream.sys: 5.03.2600.5512 English Final Retail 4/14/2008 00:15:16 49408 bytes
mspclock.sys: 5.03.2600.5512 English Final Retail 4/14/2008 00:09:52 5376 bytes
   mspqm.sys: 5.01.2600.5512 English Final Retail 4/14/2008 00:09:52 4992 bytes
 mskssrv.sys: 5.03.2600.5512 English Final Retail 4/14/2008 00:09:54 7552 bytes
  swenum.sys: 5.03.2600.5512 English Final Retail 4/14/2008 00:09:54 4352 bytes
mpeg2data.ax: 6.05.2600.5512 English Final Retail 4/14/2008 05:42:44 118272 bytes
msvidctl.dll: 6.05.2600.5512 English Final Retail 4/14/2008 05:42:02 1428992 bytes
  vbisurf.ax: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:44 30208 bytes
   msyuv.dll: 5.03.2600.5908 English Final Retail 11/27/2009 12:11:44 17920 bytes
wstdecod.dll: 5.03.2600.5512 English Final Retail 4/14/2008 05:42:12 50688 bytes

------------------
DirectShow Filters
------------------

DirectShow Filters:
WMAudio Decoder DMO,0x00800800,1,1,,
WMAPro over S/PDIF DMO,0x00600800,1,1,,
WMA Voice Decoder DMO,0x00600800,1,1,,
Mpeg4s Decoder DMO,0x00800001,1,1,,
WMV Screen decoder DMO,0x00800001,1,1,,
WMVideo Decoder DMO,0x00800001,1,1,,
Mpeg43 Decoder DMO,0x00800001,1,1,,
Mpeg4 Decoder DMO,0x00800001,1,1,,
WMT MuxDeMux Filter,0x00200000,0,0,wmm2filt.dll,2.01.4026.0000
Full Screen Renderer,0x00200000,1,0,quartz.dll,6.05.2600.6333
DV Muxer,0x00400000,0,0,qdv.dll,6.05.2600.5512
Color Space Converter,0x00400001,1,1,quartz.dll,6.05.2600.6333
WM ASF Reader,0x00400000,0,0,qasf.dll,11.00.5721.5145
Screen Capture filter,0x00200000,0,1,wmpsrcwp.dll,11.00.5721.5145
AVI Splitter,0x00600000,1,1,quartz.dll,6.05.2600.6333
WMT AudioAnalyzer,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
VGA 16 Color Ditherer,0x00400000,1,1,quartz.dll,6.05.2600.6333
Indeo® video 5.10 Compression Filter,0x00200000,1,1,ir50_32.dll,5.2562.0015.0055
Windows Media Audio Decoder,0x00800001,1,1,msadds32.ax,8.00.0000.4487
AC3 Parser Filter,0x00600000,1,1,mpg2splt.ax,6.05.2600.6333
WMT Format Conversion,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
StreamBufferSink,0x00200000,0,0,sbe.dll,6.05.2600.6076
WMT Black Frame Generator,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
MJPEG Decompressor,0x00600000,1,1,quartz.dll,6.05.2600.6333
Indeo® video 5.10 Decompression Filter,0x00640000,1,1,ir50_32.dll,5.2562.0015.0055
WMT Screen Capture filter,0x00200000,0,1,wmm2filt.dll,2.01.4026.0000
Microsoft Screen Video Decompressor,0x00800000,1,1,msscds32.ax,8.00.0000.4487
MPEG-I Stream Splitter,0x00600000,1,2,quartz.dll,6.05.2600.6333
SAMI (CC) Parser,0x00400000,1,1,quartz.dll,6.05.2600.6333
MPEG Layer-3 Decoder,0x00810000,1,1,l3codecx.ax,1.06.0000.0052
MPEG-2 Splitter,0x005fffff,1,0,mpg2splt.ax,6.05.2600.6333
ACELP.net Sipro Lab Audio Decoder,0x00800001,1,1,acelpdec.ax,1.04.0000.0000
Internal Script Command Renderer,0x00800001,1,0,quartz.dll,6.05.2600.6333
MPEG Audio Decoder,0x03680001,1,1,quartz.dll,6.05.2600.6333
File Source (Netshow URL),0x00400000,0,1,wmpasf.dll,11.00.5721.5145
WMT Import Filter,0x00200000,0,1,wmm2filt.dll,2.01.4026.0000
DV Splitter,0x00600000,1,2,qdv.dll,6.05.2600.5512
Bitmap Generate,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
Windows Media Video Decoder,0x00800000,1,1,wmvds32.ax,8.00.0000.4487
Video Mixing Renderer 9,0x00200000,1,0,quartz.dll,
Windows Media Video Decoder,0x00800000,1,1,wmv8ds32.ax,8.00.0000.4000
WMT VIH2 Fix,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
Record Queue,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
Windows Media Multiplexer,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASX file Parser,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASX v.2 file Parser,0x00600000,1,0,wmpasf.dll,11.00.5721.5145
NSC file Parser,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ACM Wrapper,0x00600000,1,1,quartz.dll,6.05.2600.6333
Windows Media source filter,0x00600000,0,2,wmpasf.dll,11.00.5721.5145
Video Renderer,0x00800001,1,0,quartz.dll,6.05.2600.6333
Frame Eater,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
MPEG-2 Video Stream Analyzer,0x00200000,0,0,sbe.dll,6.05.2600.6076
Line 21 Decoder,0x00600000,1,1,qdvd.dll,6.05.2600.6169
Video Port Manager,0x00600000,2,1,quartz.dll,6.05.2600.6333
WST Decoder,0x00600000,1,1,wstdecod.dll,5.03.2600.5512
Video Renderer,0x00400000,1,0,quartz.dll,6.05.2600.6333
WM ASF Writer,0x00400000,0,0,qasf.dll,11.00.5721.5145
WMT Sample Information Filter,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
VBI Surface Allocator,0x00600000,1,1,vbisurf.ax,5.03.2600.5512
Microsoft MPEG-4 Video Decompressor,0x00800000,1,1,mpg4ds32.ax,8.00.0000.4504
File writer,0x00200000,1,0,qcap.dll,6.05.2600.5512
WMT Log Filter,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
WMT Virtual Renderer,0x00200000,1,0,wmm2filt.dll,2.01.4026.0000
DVD Navigator,0x00200000,0,2,qdvd.dll,6.05.2600.6169
Overlay Mixer2,0x00400000,1,1,qdvd.dll,6.05.2600.6169
AVI Draw,0x00600064,9,1,quartz.dll,6.05.2600.6333
.RAM file Parser,0x00600000,1,0,wmpasf.dll,11.00.5721.5145
WMT DirectX Transform Wrapper,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
G.711 Codec,0x00200000,1,1,g711codc.ax,5.01.2600.0000
MPEG-2 Demultiplexer,0x00600000,1,1,mpg2splt.ax,6.05.2600.6333
DV Video Decoder,0x00800000,1,1,qdv.dll,6.05.2600.5512
Indeo® audio software,0x00500000,1,1,iac25_32.ax,2.00.0005.0053
Windows Media Update Filter,0x00400000,1,0,wmpasf.dll,11.00.5721.5145
ASF DIB Handler,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASF ACM Handler,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASF ICM Handler,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASF URL Handler,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASF JPEG Handler,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASF DJPEG Handler,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
ASF embedded stuff Handler,0x00600000,1,1,wmpasf.dll,11.00.5721.5145
9x8Resize,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
WIA Stream Snapshot Filter,0x00200000,1,1,wiasf.ax,1.00.0000.0000
Allocator Fix,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
SampleGrabber,0x00200000,1,1,qedit.dll,6.05.2600.6512
Null Renderer,0x00200000,1,0,qedit.dll,6.05.2600.6512
WMT Virtual Source,0x00200000,0,1,wmm2filt.dll,2.01.4026.0000
MPEG-2 Sections and Tables,0x005fffff,1,0,mpeg2data.ax,
WMT Interlacer,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
StreamBufferSource,0x00200000,0,0,sbe.dll,6.05.2600.6076
Smart Tee,0x00200000,1,2,qcap.dll,6.05.2600.5512
Overlay Mixer,0x00200000,0,0,qdvd.dll,6.05.2600.6169
AVI Decompressor,0x00600000,1,1,quartz.dll,6.05.2600.6333
Uncompressed Domain Shot Detection Filter,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
AVI/WAV File Source,0x00400000,0,2,quartz.dll,6.05.2600.6333
QuickTime Movie Parser,0x00600000,1,1,quartz.dll,6.05.2600.6333
Wave Parser,0x00400000,1,1,quartz.dll,6.05.2600.6333
MIDI Parser,0x00400000,1,1,quartz.dll,6.05.2600.6333
Multi-file Parser,0x00400000,1,1,quartz.dll,6.05.2600.6333
File stream renderer,0x00400000,1,1,quartz.dll,6.05.2600.6333
XML Playlist,0x00400000,1,0,wmpasf.dll,11.00.5721.5145
AVI Mux,0x00200000,1,0,qcap.dll,6.05.2600.5512
Line 21 Decoder 2,0x00600002,1,1,quartz.dll,6.05.2600.6333
File Source (Async.),0x00400000,0,1,quartz.dll,6.05.2600.6333
File Source (URL),0x00400000,0,1,quartz.dll,6.05.2600.6333
WMT DV Extract,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
WMT Switch Filter,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
WMT Volume,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
Stretch Video,0x00200000,1,1,wmm2filt.dll,2.01.4026.0000
Infinite Pin Tee Filter,0x00200000,1,1,qcap.dll,6.05.2600.5512
QT Decompressor,0x00600000,1,1,quartz.dll,6.05.2600.6333
MPEG Video Decoder,0x40000001,1,1,quartz.dll,6.05.2600.6333
Indeo® video 4.4 Decompression Filter,0x00640000,1,1,ir41_32.ax,4.51.0016.0003
Indeo® video 4.4 Compression Filter,0x00200000,1,1,ir41_32.ax,4.51.0016.0003

WDM Streaming Data Transforms:
Microsoft Kernel Acoustic Echo Canceller,0x00000000,0,0,,
Microsoft Kernel GS Wavetable Synthesizer,0x00200000,1,1,,5.03.2600.5512
Microsoft Kernel DLS Synthesizer,0x00200000,1,1,,5.03.2600.5512
Microsoft Kernel DRM Audio Descrambler,0x00200000,1,1,,5.03.2600.5512

Video Compressors:
WMVideo8 Encoder DMO,0x00600800,1,1,,
MSScreen encoder DMO,0x00600800,1,1,,
WMVideo9 Encoder DMO,0x00600800,1,1,,
MSScreen 9 encoder DMO,0x00600800,1,1,,
DV Video Encoder,0x00200000,0,0,qdv.dll,6.05.2600.5512
Indeo® video 5.10 Compression Filter,0x00100000,1,1,ir50_32.dll,5.2562.0015.0055
MJPEG Compressor,0x00200000,0,0,quartz.dll,6.05.2600.6333
Cinepak Codec by Radius,0x00200000,1,1,qcap.dll,6.05.2600.5512
Intel 4:2:0 Video V2.50,0x00200000,1,1,qcap.dll,6.05.2600.5512
Intel Indeo(R) Video R3.2,0x00200000,1,1,qcap.dll,6.05.2600.5512
Intel Indeo® Video 4.5,0x00200000,1,1,qcap.dll,6.05.2600.5512
Indeo® video 5.10,0x00200000,1,1,qcap.dll,6.05.2600.5512
Intel IYUV codec,0x00200000,1,1,qcap.dll,6.05.2600.5512
Microsoft H.261 Video Codec,0x00200000,1,1,qcap.dll,6.05.2600.5512
Microsoft H.263 Video Codec,0x00200000,1,1,qcap.dll,6.05.2600.5512
Microsoft RLE,0x00200000,1,1,qcap.dll,6.05.2600.5512
Microsoft Video 1,0x00200000,1,1,qcap.dll,6.05.2600.5512

Audio Compressors:
WMA Voice Encoder DMO,0x00600800,1,1,,
WM Speech Encoder DMO,0x00600800,1,1,,
WMAudio Encoder DMO,0x00600800,1,1,,
IAC2,0x00200000,1,1,quartz.dll,6.05.2600.6333
IMA ADPCM,0x00200000,1,1,quartz.dll,6.05.2600.6333
PCM,0x00200000,1,1,quartz.dll,6.05.2600.6333
Microsoft ADPCM,0x00200000,1,1,quartz.dll,6.05.2600.6333
ACELP.net,0x00200000,1,1,quartz.dll,6.05.2600.6333
DSP Group TrueSpeech(TM),0x00200000,1,1,quartz.dll,6.05.2600.6333
Windows Media Audio V1,0x00200000,1,1,quartz.dll,6.05.2600.6333
Windows Media Audio V2,0x00200000,1,1,quartz.dll,6.05.2600.6333
GSM 6.10,0x00200000,1,1,quartz.dll,6.05.2600.6333
Microsoft G.723.1,0x00200000,1,1,quartz.dll,6.05.2600.6333
CCITT A-Law,0x00200000,1,1,quartz.dll,6.05.2600.6333
CCITT u-Law,0x00200000,1,1,quartz.dll,6.05.2600.6333
MPEG Layer-3,0x00200000,1,1,quartz.dll,6.05.2600.6333

Audio Capture Sources:
SoundMAX Digital Audio,0x00200000,0,0,qcap.dll,6.05.2600.5512

Midi Renderers:
Default MidiOut Device,0x00800000,1,0,quartz.dll,6.05.2600.6333
Microsoft GS Wavetable SW Synth,0x00200000,1,0,quartz.dll,6.05.2600.6333

WDM Streaming Capture Devices:
SoundMAX Digital Audio,0x00200000,2,2,,5.03.2600.5512

WDM Streaming Rendering Devices:
SoundMAX Digital Audio,0x00200000,2,2,,5.03.2600.5512

BDA Transport Information Renderers:
MPEG-2 Sections and Tables,0x00600000,1,0,mpeg2data.ax,

WDM Streaming Mixer Devices:
Microsoft Kernel Wave Audio Mixer,0x00000000,0,0,,

BDA CP/CA Filters:
Decrypt/Tag,0x00600000,1,0,encdec.dll,6.05.2600.6161
Encrypt/Tag,0x00200000,0,0,encdec.dll,6.05.2600.6161
XDS Codec,0x00200000,0,0,encdec.dll,6.05.2600.6161

Audio Renderers:
SoundMAX Digital Audio,0x00200000,1,0,quartz.dll,6.05.2600.6333
Default DirectSound Device,0x00800000,1,0,quartz.dll,6.05.2600.6333
Default WaveOut Device,0x00200000,1,0,quartz.dll,6.05.2600.6333
DirectSound: SoundMAX Digital Audio,0x00200000,1,0,quartz.dll,6.05.2600.6333

WDM Streaming System Devices:
SoundMAX Digital Audio,0x00200000,9,2,,5.03.2600.5512



[Mister Giggles 310]

In all of this, still no mention of the video card in the machine. If two differing operating systems, and thus drivers, are having the same problem running SimCity 4, then it is likely the video card itself is the issue.

It could be a situation where SimCity 4 is confusing the card for something it's not, or the card is simply borked. Or is unable to run certain games due to its age or lineage. Without a model number, diagnosis is more difficult than usual...

[Pete4350 9]

Here's a screen shot of the offline computer CorinaMarie

Mister Giggles, I thought that too, but the tower is only 3 months old. It was built exclusively for gaming so has quality Video and sound cards.

[Mister Giggles 310]

The machine SimCity 4 is on, the offline Vostro 400 one, is quite old. 2007. The video card may be giving up the ghost, or perhaps there are heat and/or dust problems.

[CorinaMarie 29,894]

Ok, from there click on the Display Tab. What does that look like in the DirectX Features section and what happens when clicking Test DirectDraw and Test Direct3D on that page?

How far into the game can you get? Like can you get to the main region menu where you have Settings Options? I'm wondering if switching to Software Rendering (as a test, not a permanent solution) would let you play.

[Pete4350 9]

Okay CorinaMarie, I downloaded the driver for the video card and installed it. Then it asked for the WHQL logo'd driver to be installed. I've done that. The video driver has done wonders to improve the image on the monitor (amazingly, duh!) Now, I install the SC 4 CD and click on play. The screen goes black for a few seconds then reverts back to the XP home screen. I've restarted it. I've gone through the Test Direct Draw and Test Direct 3-D and they work fine. I guess this game hates me, but I'm not giving up!!



[CorinaMarie 29,894]

Woot! I believe we've made great progress and I feel it's prolly now just a matter of the screen resolution ticking off the game. Let's try this:

• Right click on your desktop
• Select Properties
• Click on settings tab
• What is the screen resolution set at?

Here's mine for reference:

(Note: This is my internet comp instead of the game comp, but that's irrelevant for the point I'm illustrating.)

Also, do you have an icon on your desktop which you use to launch SimCity 4? (You do by default install. I'm just making sure cause once we know your resolution we will be editing the target line in it.)



[Pete4350 9]

Yep, got all that CM. If I set the screen resolution on 1024 by 768, my screen is very small. I have it set on 1600 by 900.

I tried starting SC4 on all settings a moment ago, but to no avail. It flickers with the EA logo, then the screen goes dark then back to the XP home screen.



[CorinaMarie 29,894]

Ok, so it will run in 1024 x 768 right?

And do you have the SimCity 4 Icon on your desktop?

From there we will tweak the target command line to use your 1600 x 900.

[Pete4350 9]

No, it will not run on any setting.

So, whats this "tweaking" business?

[CorinaMarie 29,894]

Do you have the SimCity 4 Icon on your desktop?

Can you right click it and select Properties?

Then do you see a Target under the Shortcut Tab?

[Pete4350 9]

Yep, got all that......

[CorinaMarie 29,894]

Ok, does that line contain: "C:\Program Files\Maxis\SimCity 4\Apps\SimCity 4.exe" or similar?

What we want to do is add a space after the last quote and then add the following. (Note I'm putting them on separate lines, but you type them in with a space after each one so it's just one big long line)

-CPUCount:1
-intro:off
-CustomResolution:enabled
-r1600x900x32

Then click Apply, then click Save.

[Pete4350 9]

And do I commence this immediately after, quote.....SimCity 4.exe" -CPUCount:1.....?



[CorinaMarie 29,894]

1 hour ago, Pete4350 said:

And do I commence this immediately after, quote.....SimCity 4.exe" -CPUCount:1.....?



Yes. In total after the last quote it'll look like this.

...SimCity 4.exe" -CPUCount:1 -intro:off -CustomResolution:enabled -r1600x900x32

[Pete4350 9]

IT WORKS CM!!! IT WORKS!!

I'd like to thank you in a special way. Could I send you anything from Australia that you would particularly like?

[CorinaMarie 29,894]

1 hour ago, Pete4350 said:

IT WORKS CM!!! IT WORKS!!

I'd like to thank you in a special way. Could I send you anything from Australia that you would particularly like?

Woot!

Just go thru and click the Like for each of my posts and I'll be happy.
